Lower Arm Bushing Rebuild Kit
Not sure if this part is right for you? Give us a call at (562) 694-0083 and we will help you find the best fit for your needs.
Couldn't load pickup availability
Description
This rebuild kit is for a pair of lower control arms.
Key Notes
Standard Delrin is a highly durable plastic-like compound that can endure significant mileage and time, provided it receives proper maintenance. However, if the bushings are not adequately greased or develope dry spots, they can produce a loud, unpleasant squeak.
PTFE-blended Delrin offers the advantage of being self-lubricating, resulting in reduced friction and noise. Though slightly more brittle than standard Delrin, it can still withstand substantial use over long periods with the right upkeep.

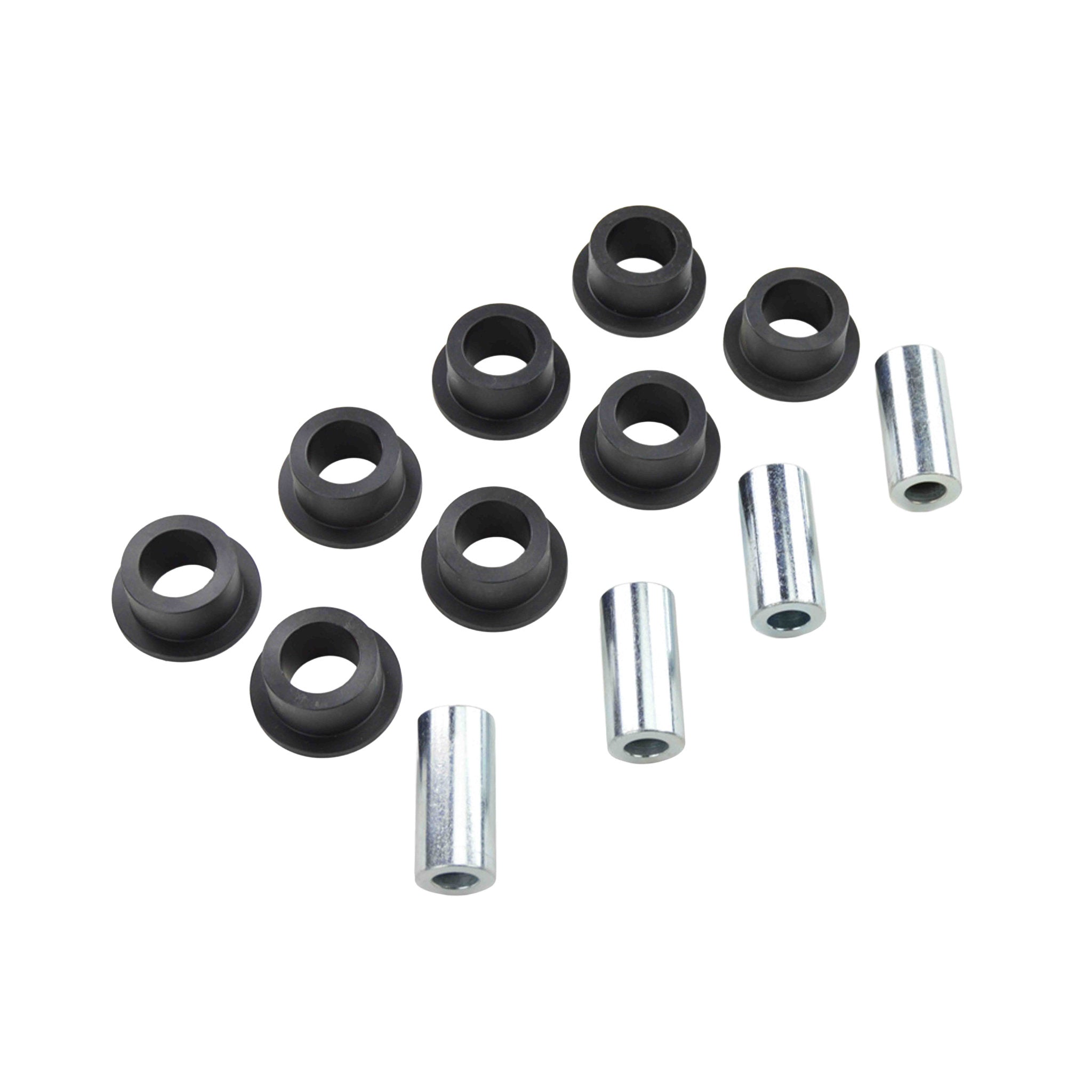

What's Included
- (x8) 1.5"OD x 1"ID Bushings
- (x4) Inner Bushing Sleeves (Optional)
Instructions
- 1. Remove Components: Remove zerk fittings, inner bushing sleeves, and old delrin bushings
2. Clean: Thoroughly clean all old grease from the control arms - 3. Grease Application: Apply a fresh, thin layer of Prothane Super Grease to the inside of the control arm bushing sleeves
- 4. Install Bushings: Use an arbor press, dead blow hammer, or rubber mallet to press in the new bushings until they are fully seated
- 5. Check Fit: Test if the inner bushing sleeves can be pushed through the new bushings, by hand, with medium-light tension. If excessive force is needed, ream the bushings.
- 6. Reaming (if necessary):
- Use the proper size reamer to ream the bushings while they are installed on the control arms
- Spin the reamer fast but make slow passes
- After reaming, check again if the inner sleeve can slide through the bushing by hand. Repeat if needed
- 7. Debris Removal: If reaming was done, clean out any debris from between the bushings and inside the zerk fitting hole
- 8. Final Grease Application: Apply more Prothane Super Grease inside the reamed bushings, re-install the inner bushing sleeves and zerk fittings, thoroughly grease the outside of the bushings and the inside of the control arm pockets
Compatibility
2004-2023 Nissan Titan Dirt King Lower Control Arms 2WD/4WD
2005-2021 Nissan Frontier Dirt King Lower Control Arms 2WD/4WD
2005-2015 Nissan XTerra Dirt King Lower Control Arms 2WD/4WD
