Elevate 2.5”/1” FRL Lift Kit, 2005-2023 Toyota Tacoma 2/4WD

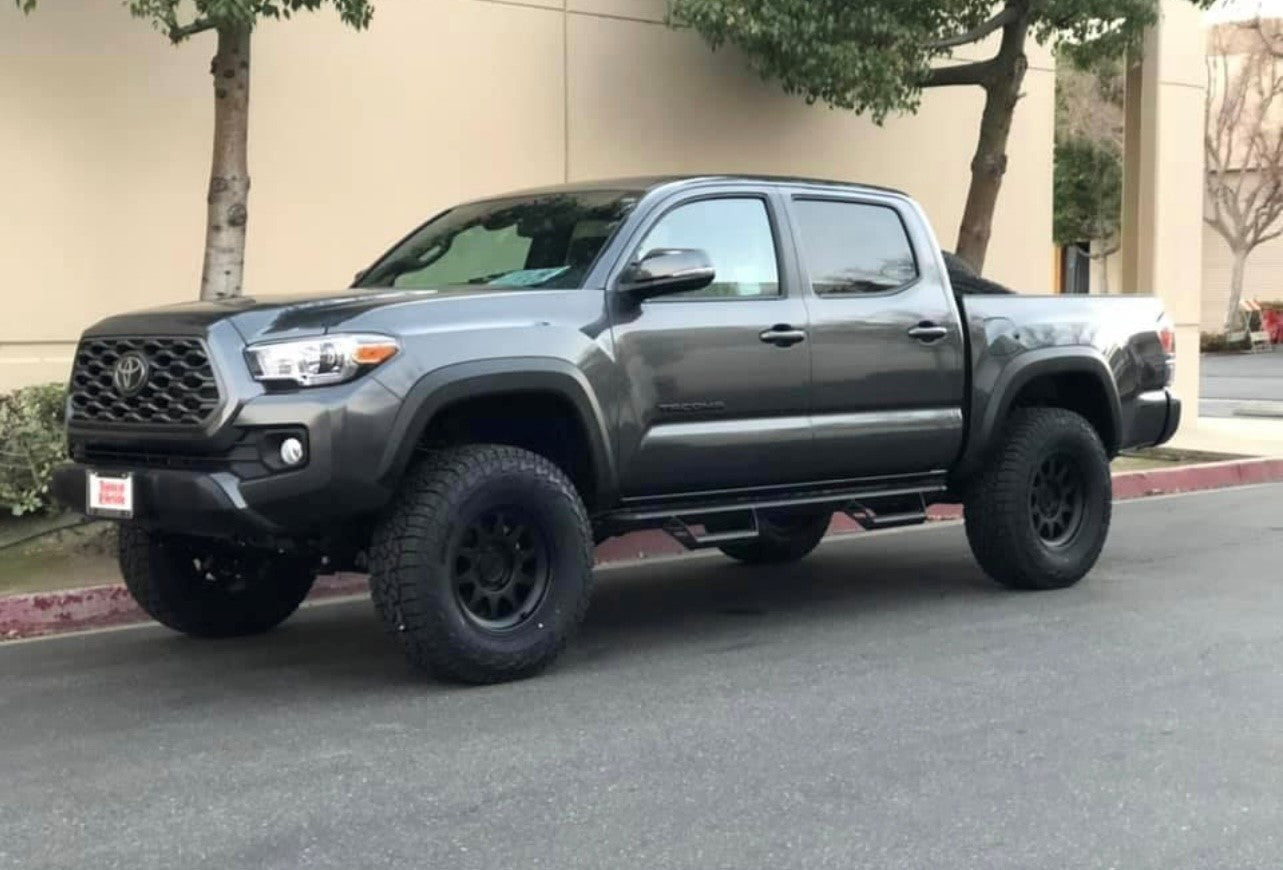

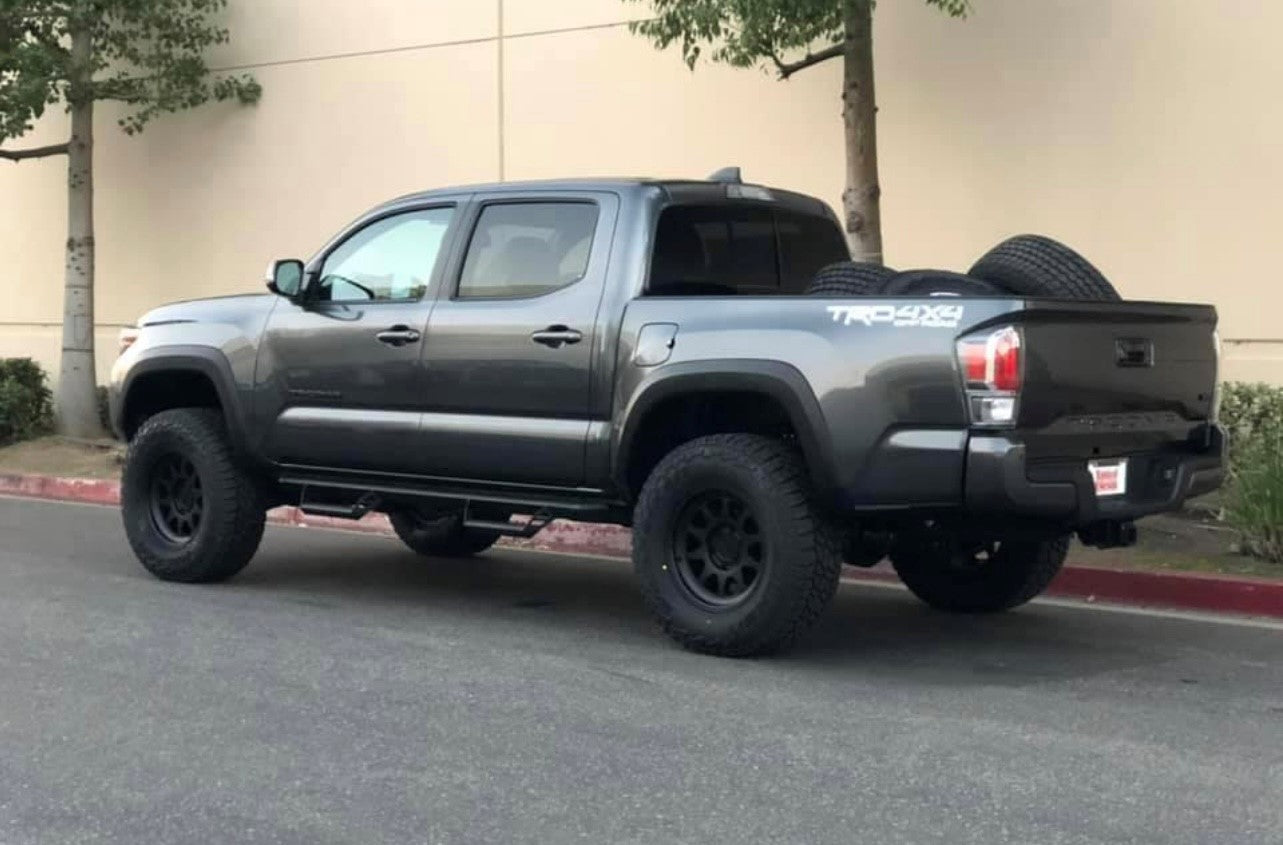

Elevate Suspension offers a simple and cost-effective way to lift your 2005-2023 Toyota Tacoma 2/4WD with the 2.5/1 Front & Rear Lift, (FRL). This 2.5/1 FRL kit will provide additional ground clearance and plenty of room to fit 285/70R17 tires, all while maintaining the factory ride characteristics. Elevate Suspension 2.5/1 FRL lift consist of a set of 2.5" front steel bolt on strut spacer that will not require strut disassembly, on 4WD models 1” Differential drop spacers to help correct CV angles, 1” rear lift blocks to help level the rear with the front of your truck and Grade 8 U-bolt kit to secure the rear axle and block to the leaf pack. Elevate Suspension 2.5/1 FRL kit will safely lift and level your Tacoma at a price that will not hurt your pocket.

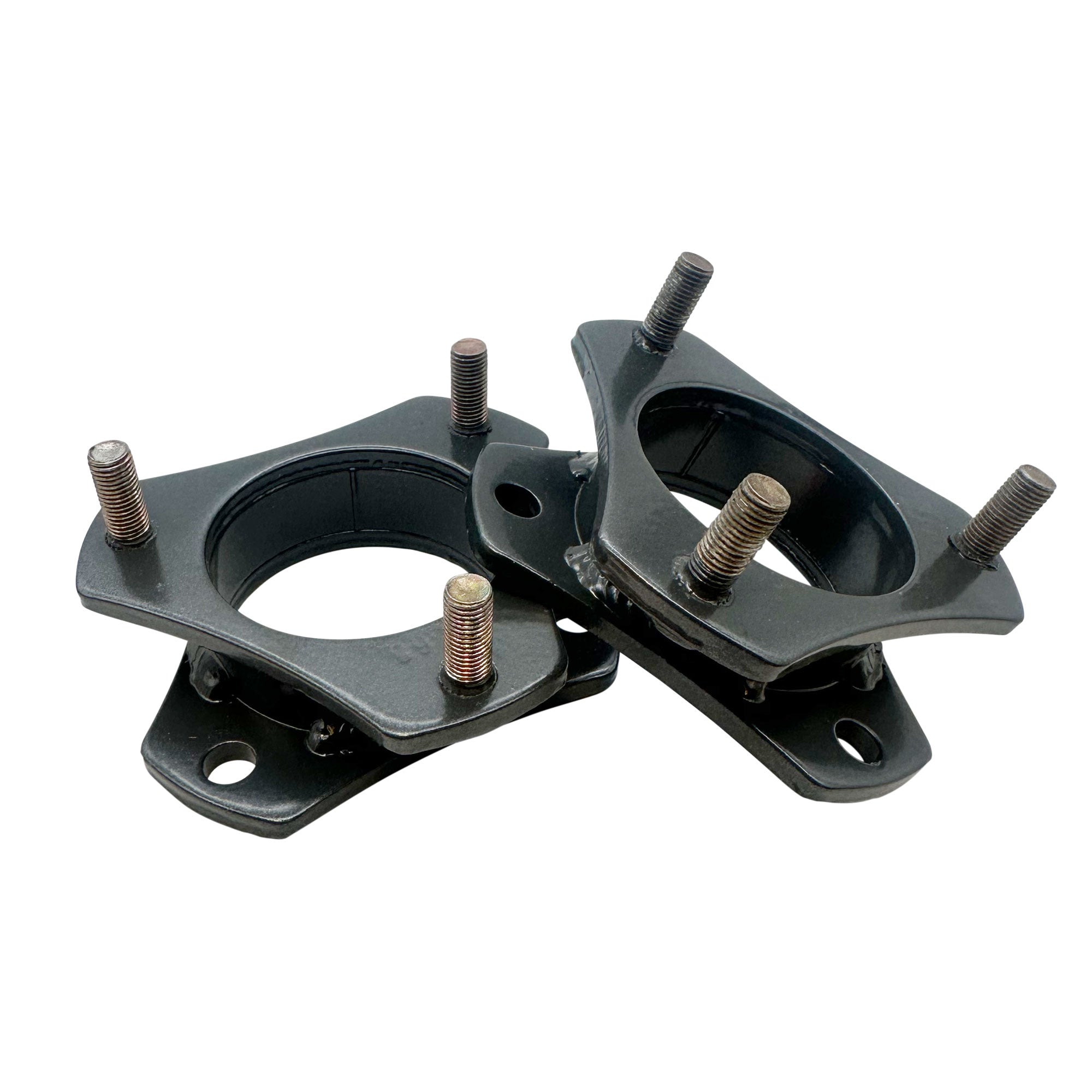

• 2.5" Steel front strut spacers
• Differential & skid plate drop spacers

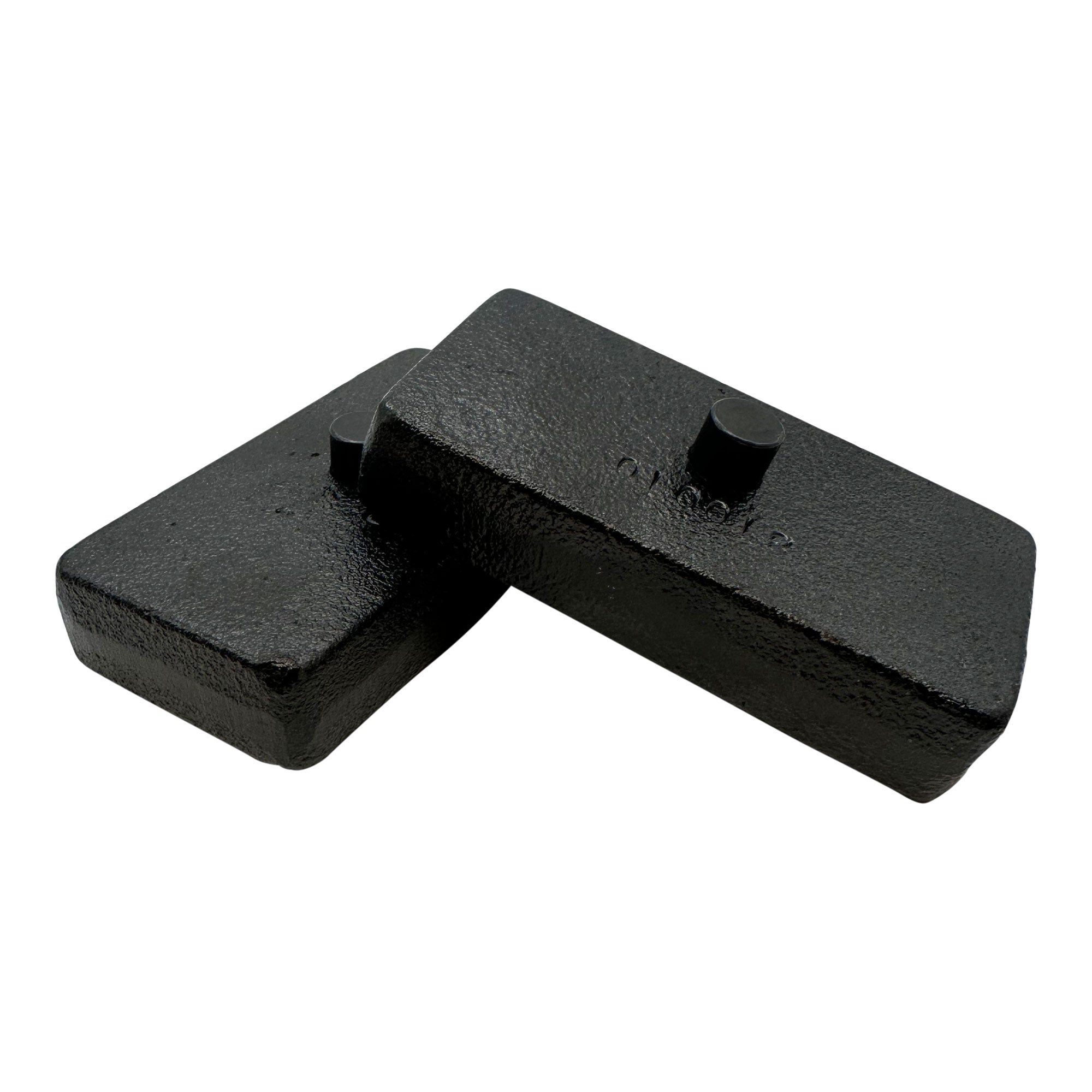

• 1” rear block with U-bolt kit
• Lifts and levels for additional ground clearance
• Allows tire clearance of up to a 33 inch tire
• Fender well trimming may be required
• Fits: Tacoma SR5, TRD Sport, TRD Off-Road & Pre Runner models
• Does Not Fit: TRD Pro, Trail Edition or 5 Lug Tacoma Models
• Lifetime warranty

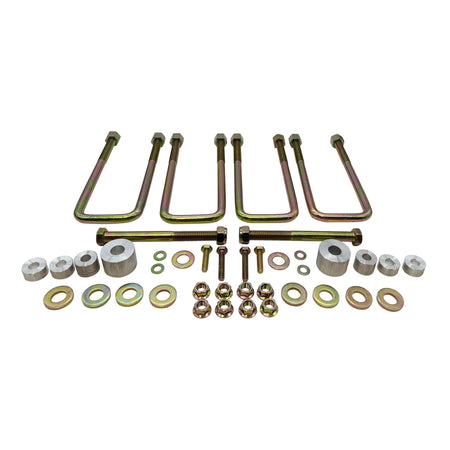

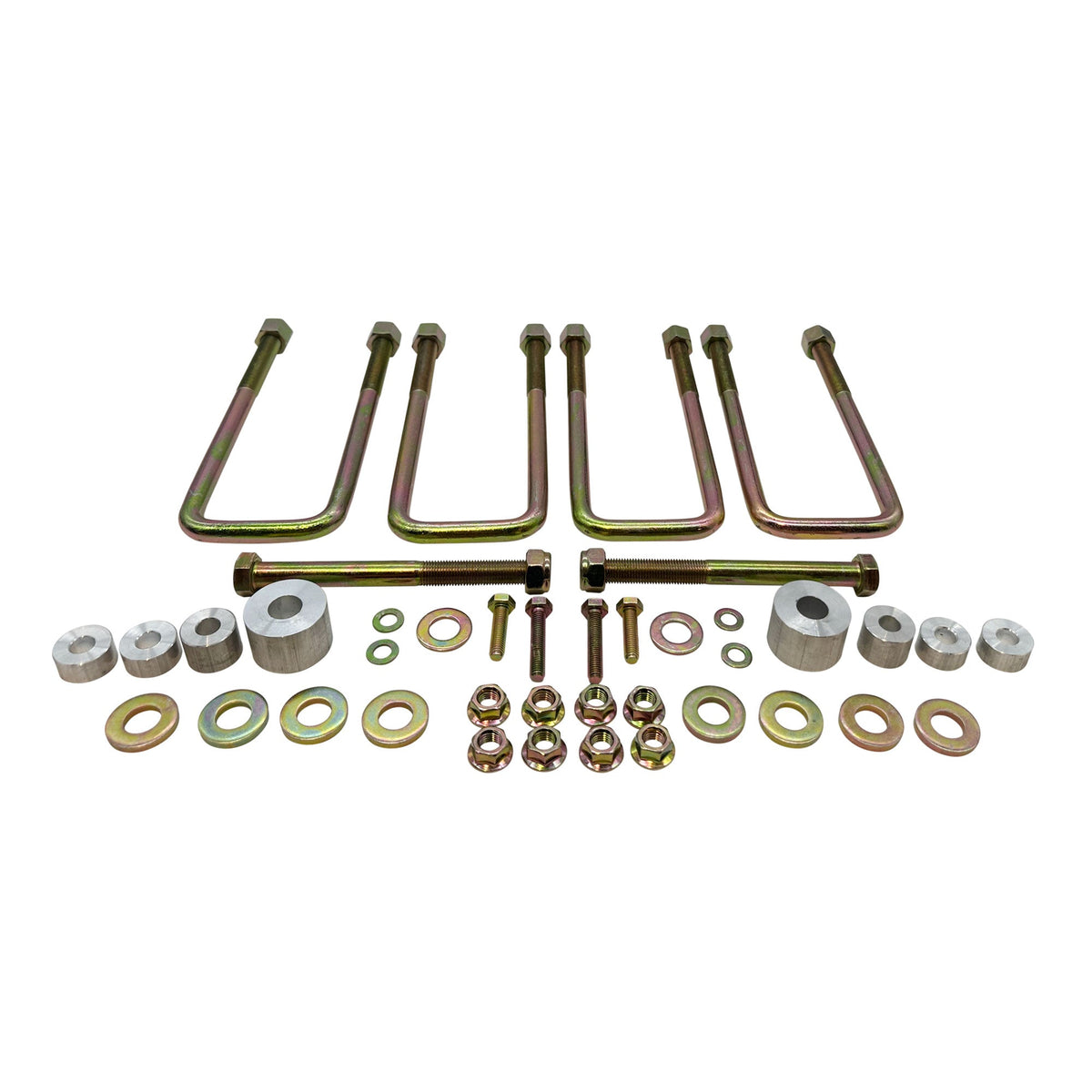

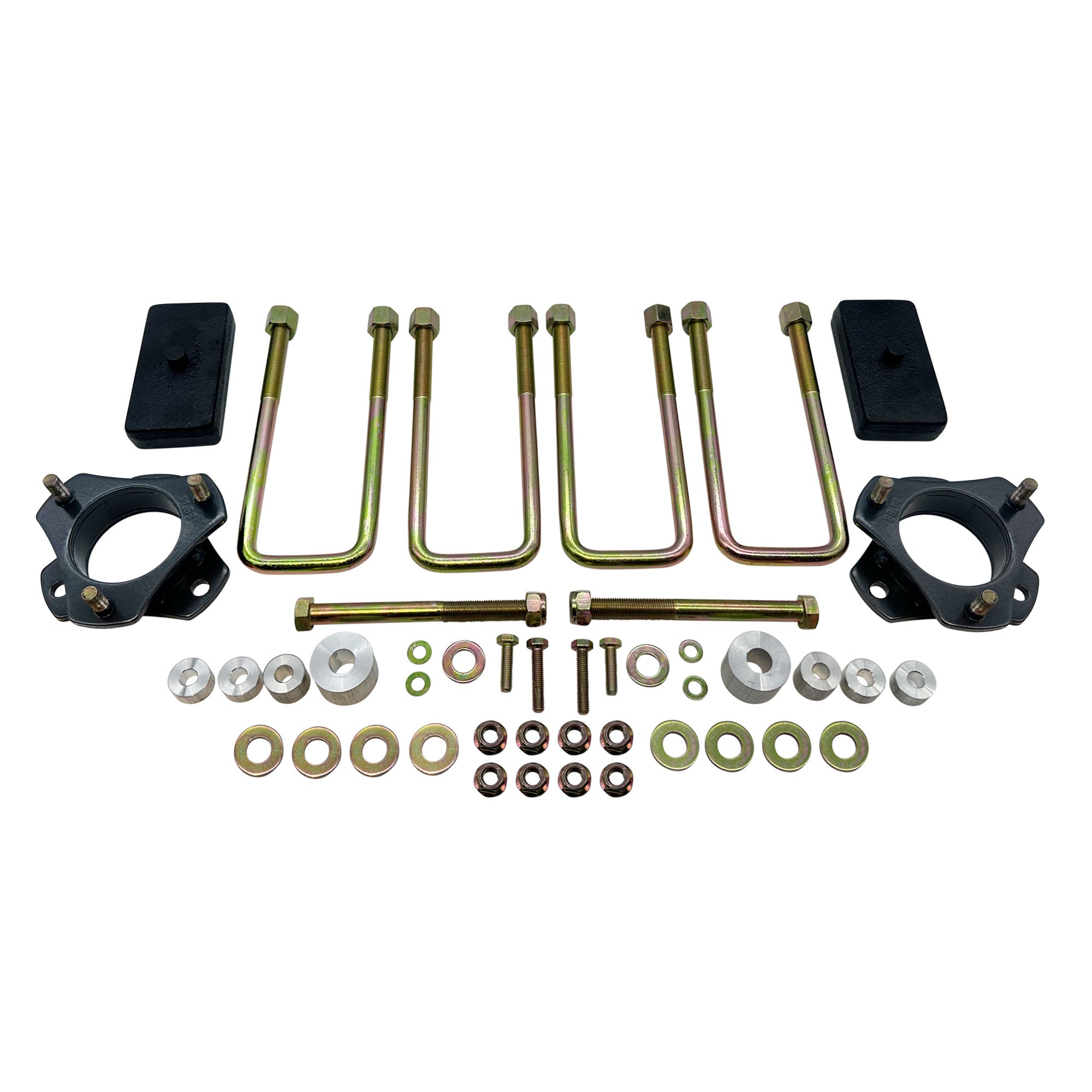

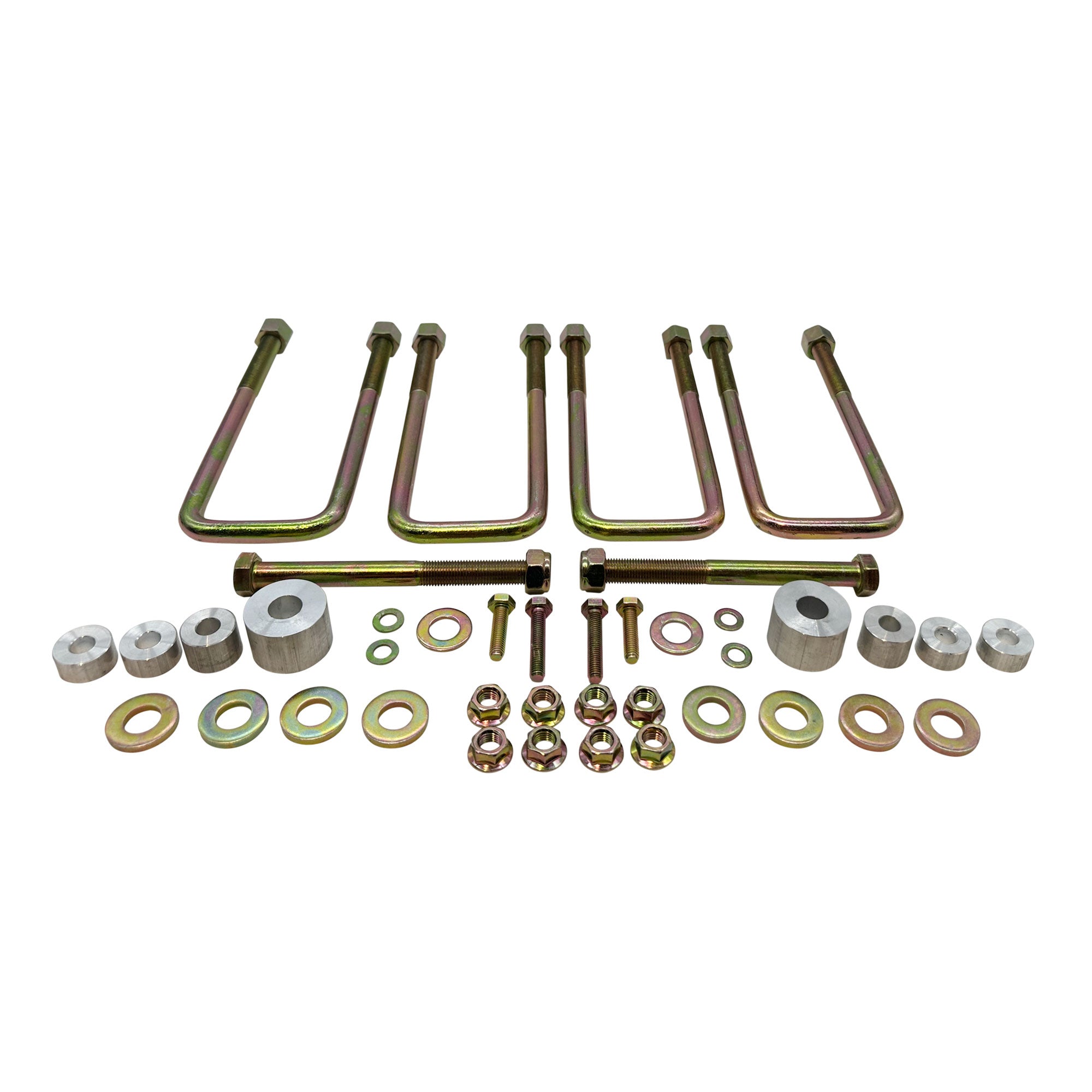

• (2) Strut Spacers
• 1" Rear Lift Block Kit
• U-Bolt Kit
• Diff drop spacer & Skid plate spacers
• Related hardware

Q: Do I need an upper control arm?

A: it is not Required, but will improve alignment and drivability

Q: Will the stock tires and wheels work with this lift kit ?

A: Yes, it might look a little odd but the stock wheels and tires will work

Q: Will these work on a 2wd application?

A: Yes, but diff drop spacers will not be used for 2wd Models.
