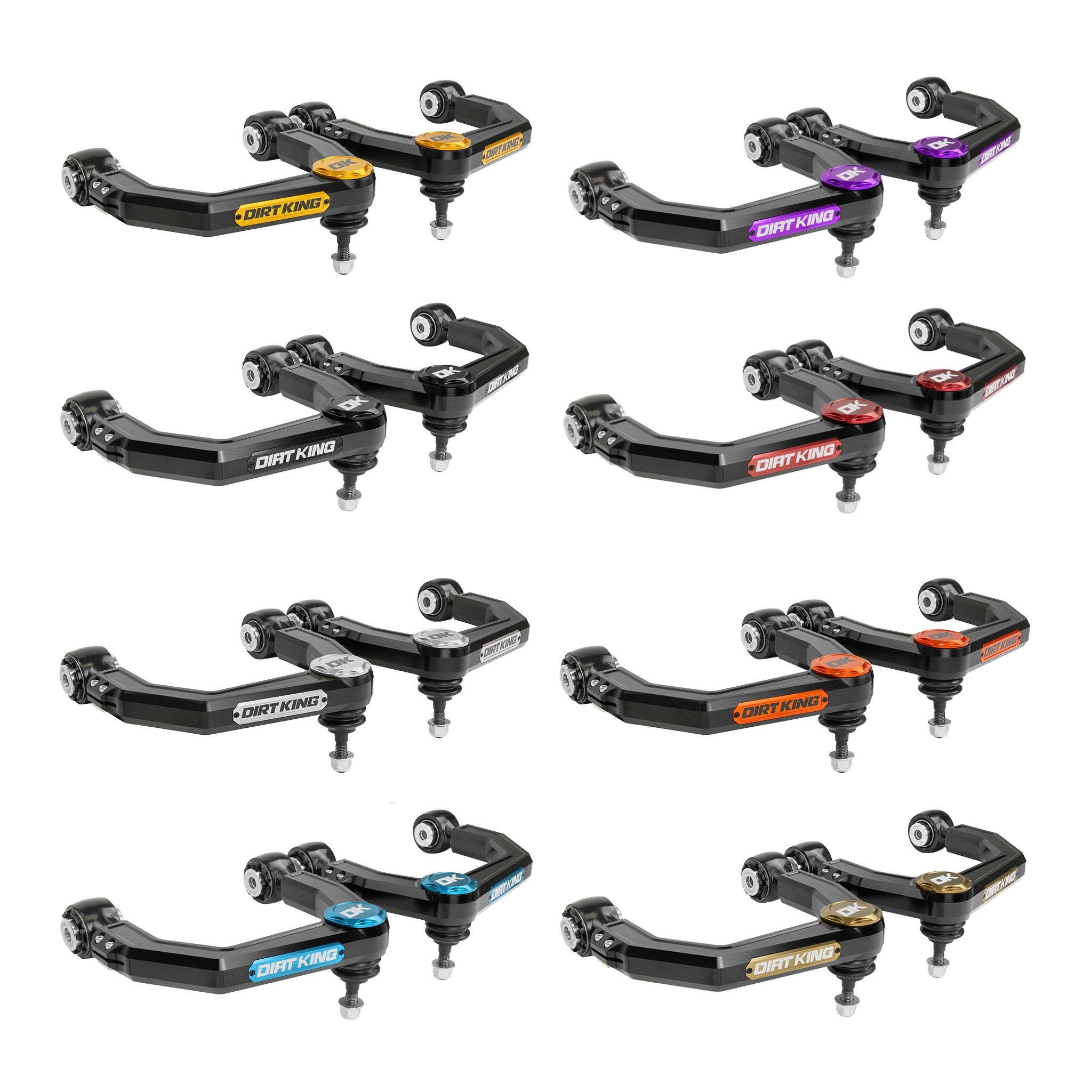

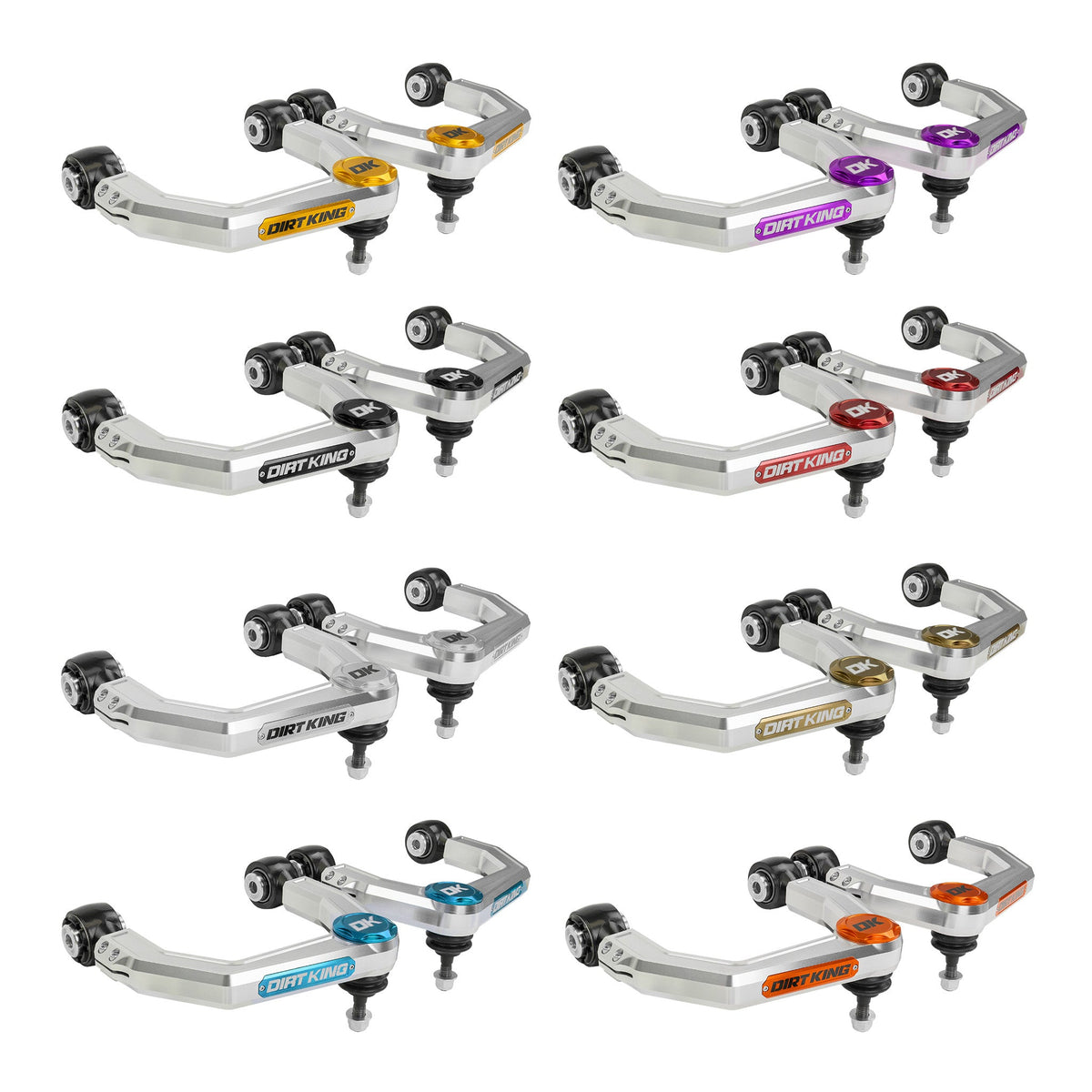

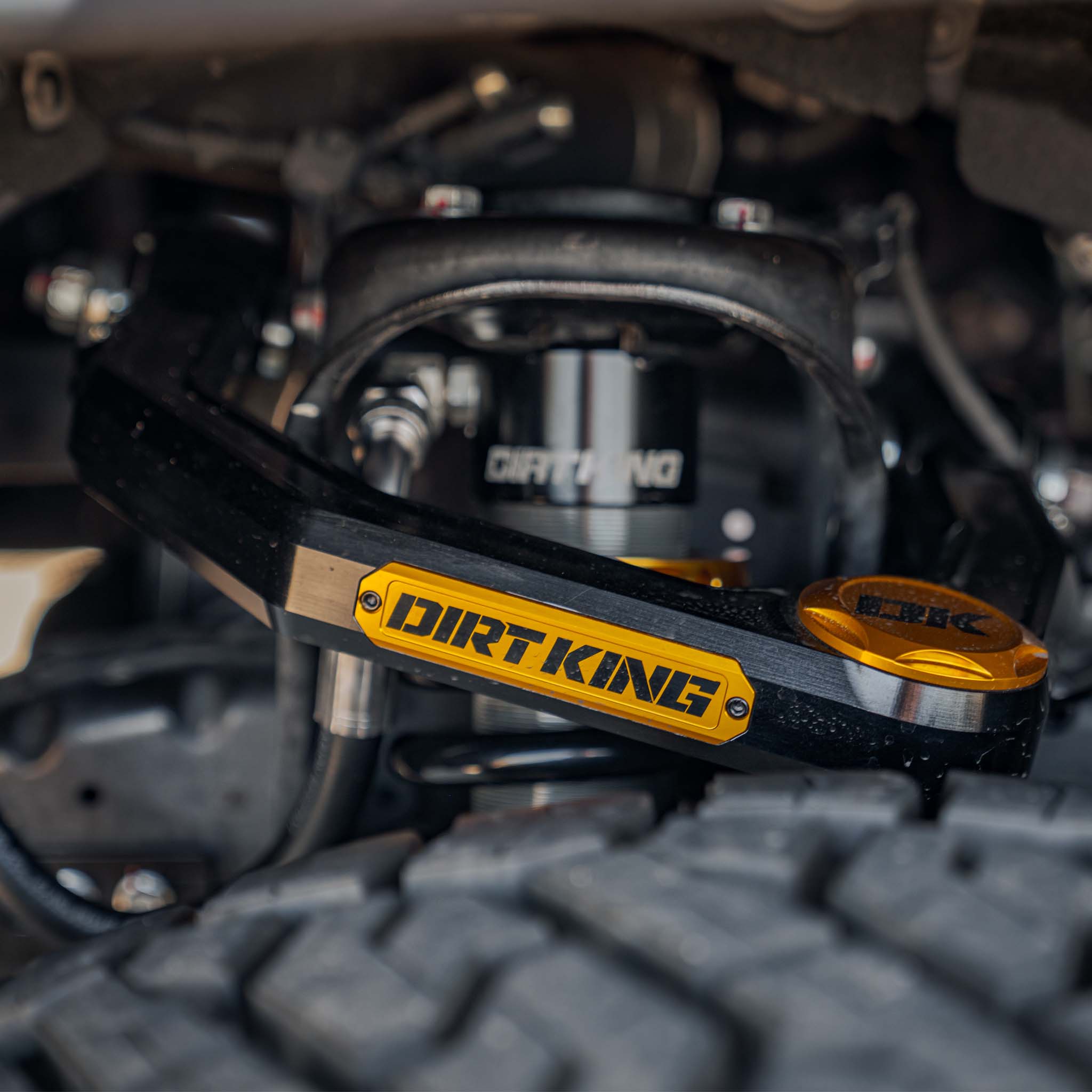

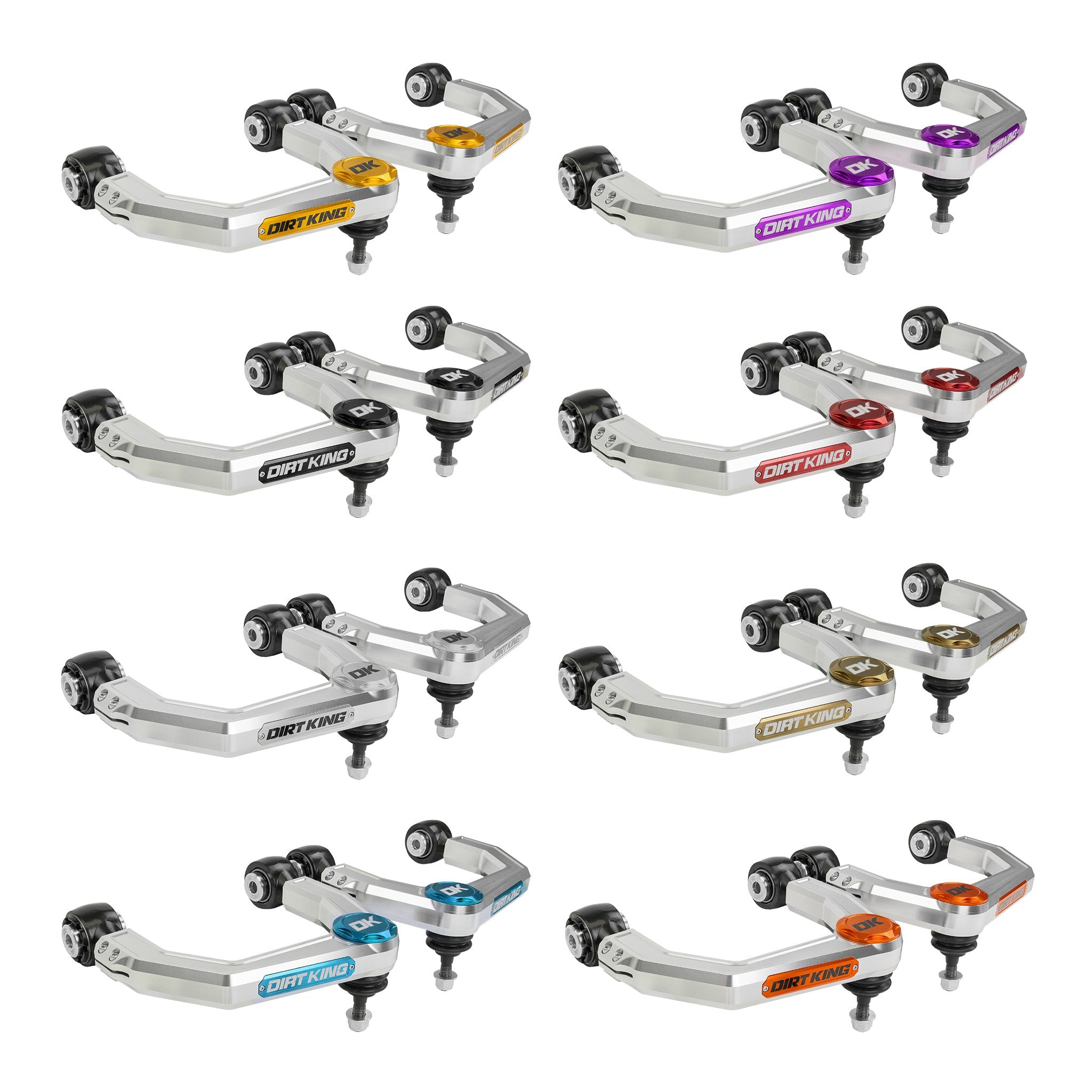

Billet Upper Control Arms

The Dirt King Billet Upper Control Arms are precision-machined from 6061 aluminum, offering exceptional strength and a refined appearance. Designed to optimize suspension geometry, these arms allow for increased front lift and suspension travel when paired with Dirt King shocks. Factory control arms often compromise geometry and structural integrity due to excessive articulation at stock joints, but Dirt King arms solve this with improved caster settings and re-engineered pivot angles for better handling and articulation.

A key feature of the billet arms is the adjustable inner pivot system. The maintenance-free Probearing SilentSpin bushings provide superior ride comfort, with a polyurethane outer layer that dampens road noise and a self-lubricating composite core for smooth, quiet operation. The bushings are optimal for on-road and off-road performance, delivering excellent handling with no compromises.

Billet UCAs are equipped with heavy-duty Probearing ball joints for long-lasting durability in harsh environments. These billet upper control arms are built for lasting performance and easy installation, making them an excellent upgrade for any vehicle.

• Amount of Lift: Allows for 0–3” of lift
• Track Width: Stock
• Maximum Backspacing: 5.75”
• Minimum Rim Size: 17”
• Control Arm Material: 6061 aluminum
• Bushings: Probearing SilentSpin (maintenance-free, self-lubricating)
• Ball Joints: Heavy-duty Probearing
• Camber/Caster Adjustability: Yes
• Rebuildable: Yes (all components are fully rebuildable or replaceable)
• Warranty: Limited lifetime warranty on arms, 1-year warranty on ball joints and bushings

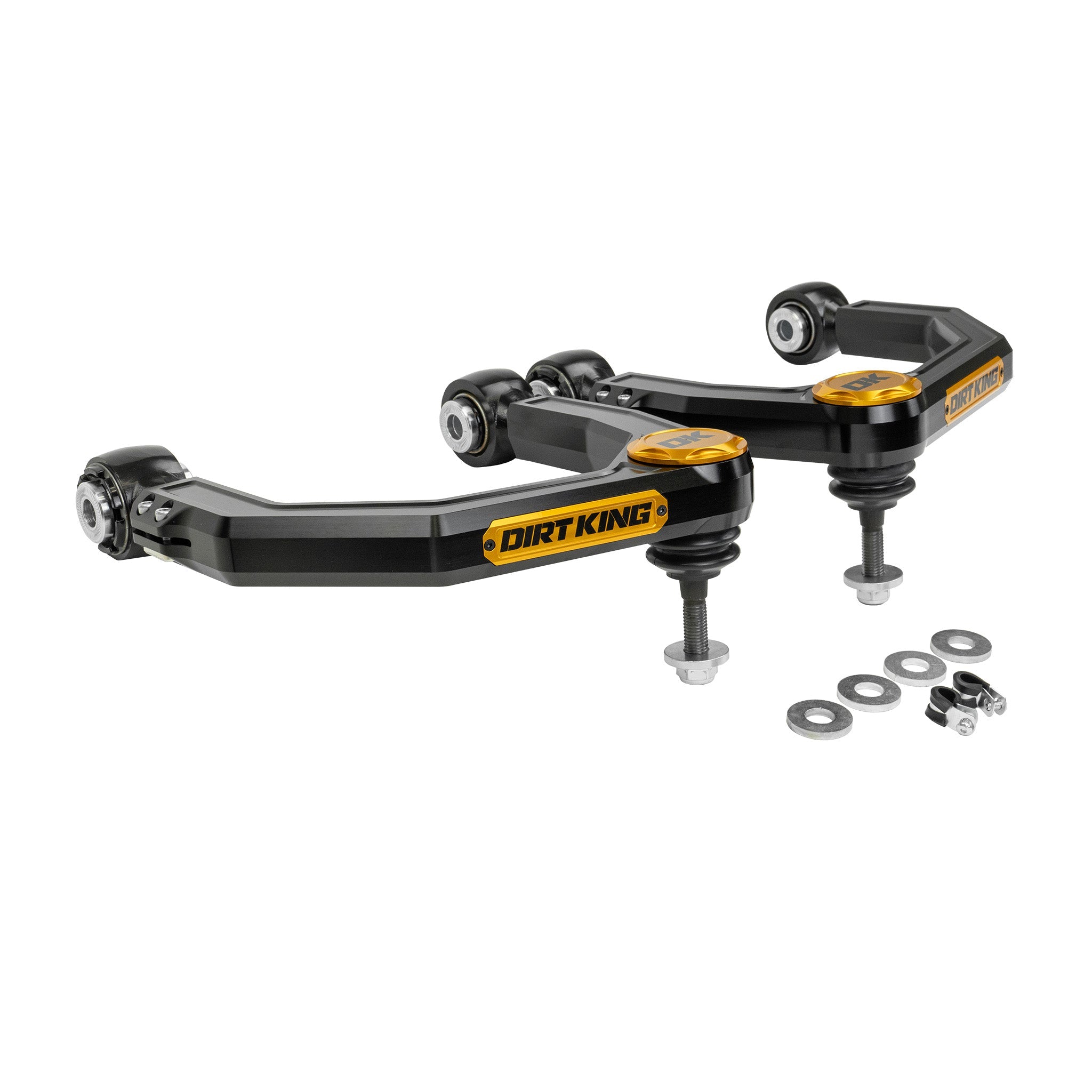

• 2 Billet upper control arms (left and right)
• Heavy-duty Probearing ball joints (pre-installed)
• Probearing SilentSpin bushings
• Installation hardware
• Detailed installation instructions

• CAD designed
• Precision-machined from 6061 aluminum for strength and durability
• Improved caster settings for enhanced handling
• Re-engineered pivot angles for increased articulation
• Adjustable inner pivot system for camber and caster adjustments
• Maintenance-free SilentSpin bushings for smooth, quiet operation
• Heavy-duty Probearing ball joints for long-lasting durability
• Fully rebuildable and replaceable components for easy maintenance
• Compatible with Dirt King shocks for increased lift and suspension travel

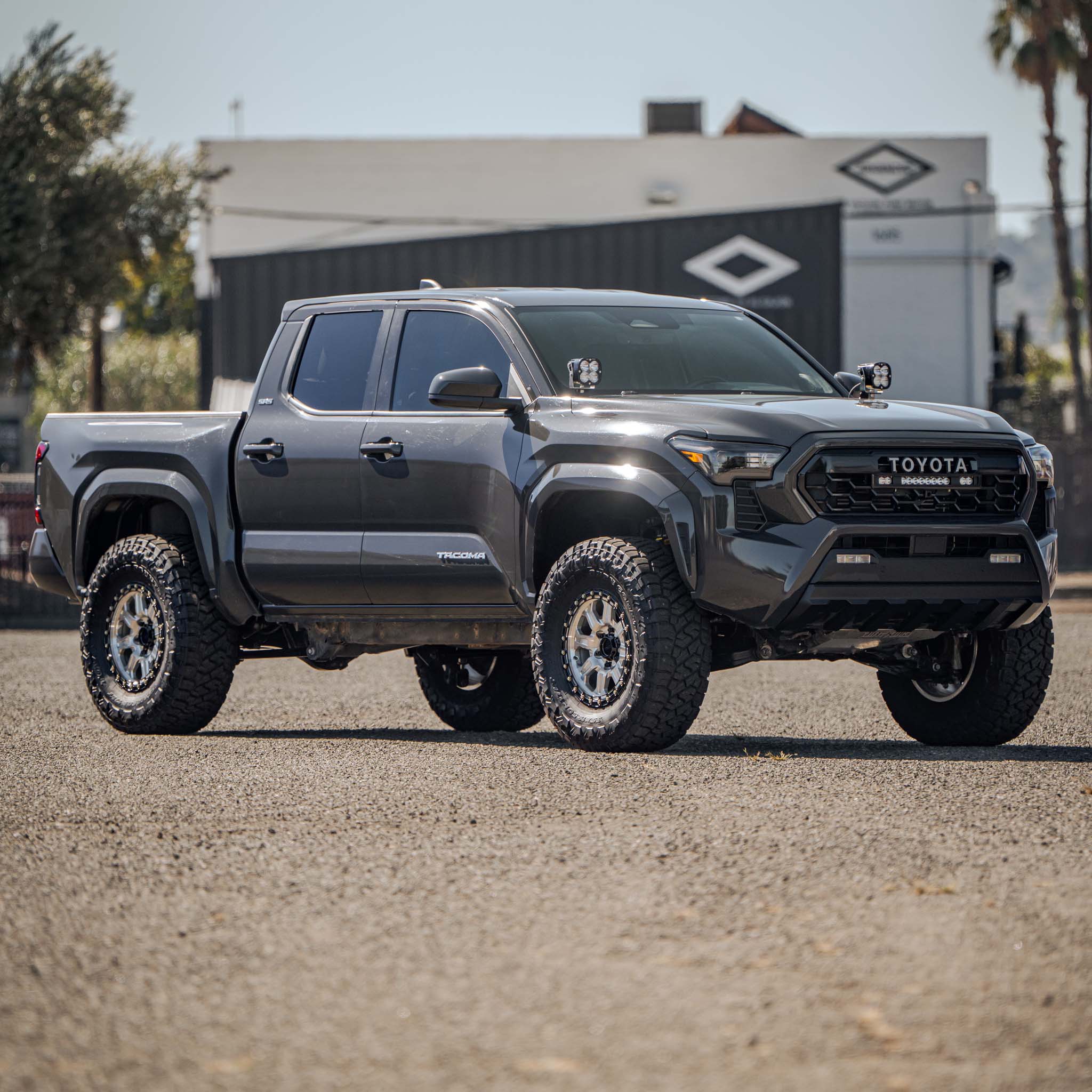

2024–2025 Toyota Tacoma 2WD / 4WD

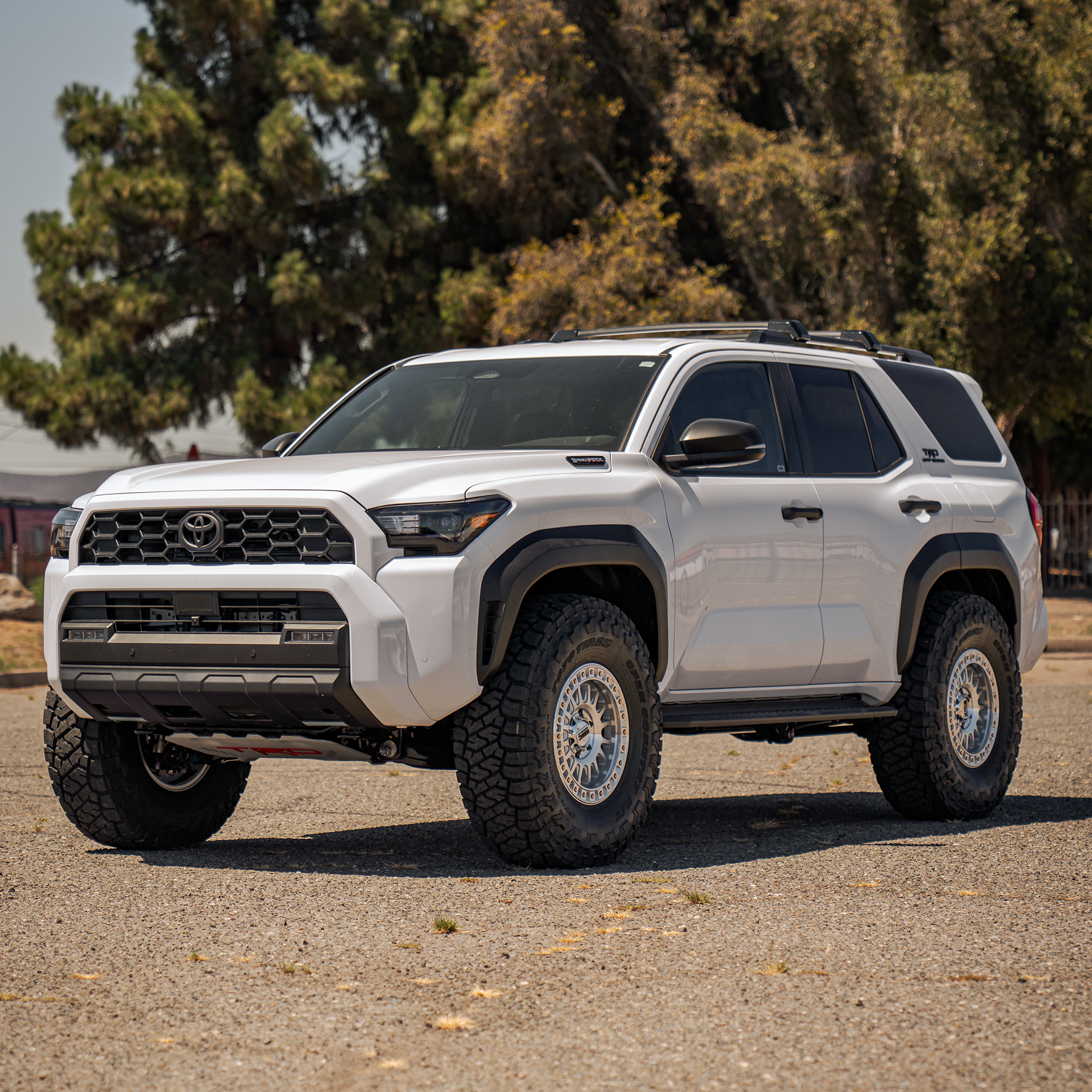

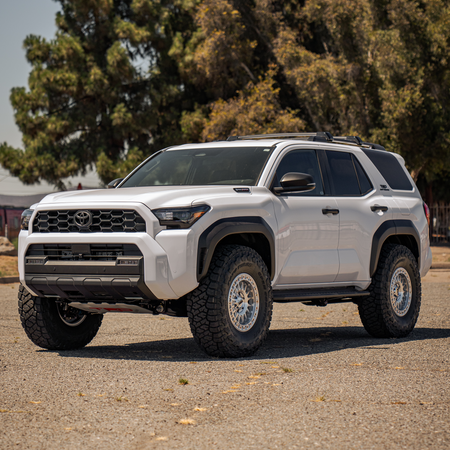

2025 Toyota 4Runner 2WD / 4WD

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
